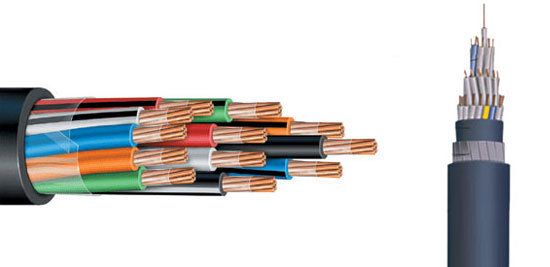

Contol cables are used for power supply to the control circuits. Cables are manufactured as per IS, BS & IEC standards as per the requirement of customers.

CONSTRUCTION	VOLTAGE GRADE	SIZE	REFERRED STANDARDS
Bare Cu/ Tinned Cu, PVC/XLPE/HR PVC Insulated, Armored / Unarmored, LSZH/FRLS/FR/PVC/HR PVC/HDPE Inner & Outer Sheath	650 /1100 Volts	1.5 SQ MM - 2C TO 61 cores 2.5 sq mm - 2c to 61 Cores and as per client's requirement	IS:1554-(Part-1), IS:7098(Part-1), IEC:60502 (Part-1), BS:5467,BS:6724, BS:6346



CONDUCTOR

Solid or stranded, circular annealed, bare or tinned copper wire of 1.5 sq. mm, 2.5 sq. mm, 4.0 sq. mm.

INSULATION

Fully colour coded cores using PVC. Core identification by printed characters is also available on order. The three primary colour pigments are magenta (red), yellow, and cyan (blue).

SCREENING

Screening by Copper Wire Braid, Aluminium Mylar tape or Aluminium Wire.

DRAIN WIRE

Drain wire of solid or stranded, bare or tinned copper wire are normally provided.

MECHANICAL PROTECTION

Galvanized steel wire, strip or double helical steel tape armour.

INNER AND OUTER SHEATH

PVC; Black or Grey.

Control cables are used for power supply to the control circuits. Cables are manufactured as per IS, BS & IEC standards as per the requirement of customers.

CONDUCTOR

Solid or stranded bare or tinned circular annealed conductor

INSULATION

PVC/XLPE insulated

CORE

Core identification by colour coding or by number printing, cores stranded and covered with extruded PVC layer, galvanised steel wire or strip armoured.

INNER AND OUTER SHEATH

PVC black or as required. In case of unarmoured type cables, overall sheath is provided on inner sheath.

PARA 2 In 1978, it was the beginning of a new era in the Indian cable industry, when 'SRIRAM CABLES' was founded. With a pragmatic vision and hardwork, the company rose to meteoric heights and created an enviable niche for itself in the Indian Cable Industry. Today, 'Sriram Cables' is a name synonymous with the performance and reliability.

CONSTRUCTION	VOLTAGE GRADE	SIZE	REFERRED STANDARDS
Bare Cu/ Tinned Cu, PVC/XLPE/HR PVC Insulated, Armored / Unarmored, LSZH/FRLS/FR/PVC/HR PVC/HDPE Inner & Outer Sheath	650 /1100 Volts	1.5 SQ MM - 2C TO 61 cores 2.5 sq mm - 2c to 61 Cores and as per client's requirement	IS:1554-(Part-1), IS:7098(Part-1), IEC:60502 (Part-1), BS:5467,BS:6724, BS:6346



The company has state-ofthe- art manufacturing facility located at Chopanki Industrial Area Bhiwadi (Rjasthan), close to Delhi having a total area of 40,000 square meters. It is an ISO 9001 & ISO 14001 certified facility and is meticulously equipped with ultra modern machinery to manufacture Low Voltage and High voltage cables up to and including 66 KV Voltage Grade. Recently, the company has commissioned a state of the art, C.C.V line from Troester Germany, with features like Dry-Cured / Dry-Cooled, Rotating, Caterpillars Technology. The company offers a comprehensive range of HT/LT-XLPE/PVC Power, Control, Jelly filled telecom cables, Signaling, Axle counter, Aerial bunched, Instrumentation, Flexible, Mining , Fire Retardant Low Smoke, HR Insulated Cables for applications in Railways, Telecommunications, Automobile, , Power Generation, power distribution, power transmission, steel plants, chemical and process industry, fertilizer plants, space research, nuclear power plants, Building and Housing, Petro chemicals, Electronics, Defense, Turn key Contractors and various other industries.
