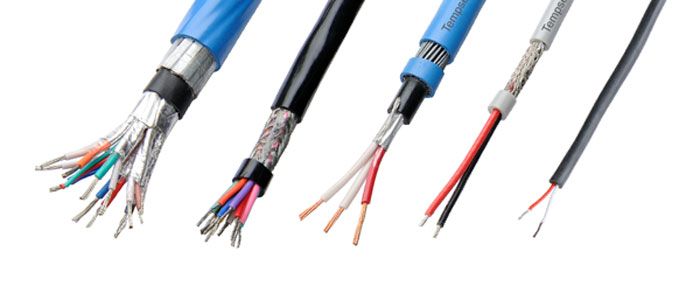

Thermocouple Extension and Compensating Cables are used for connecting thermocouples to control and measurement devices (pyrometers etc.) that may be some distance away from each other in control rooms.
CONSTRUCTION
Kx, Jx, Ex, Tx, Type Extension / Kx, Sx, Rx Type Compensating Conductor,XLPE/PVC/HR PVC/LSOH/LDPE Insulated, Armored/Unarmored Bare Cu/ Tinned Cu, PVC/HR PVC/LSZH/HDPE Inner & Outer Sheath, Tape Braiding,individual/ Overall AL Mylar/Copper Tape/Copper Braid Screening
VOLTAGE GRADE
300 / 500 / 1100 Volts
SIZE
12 AWG/ 16 AWG/ 20 AWG – up to 100 pairs and as per client’s requirement
REFERRED STANDARDS
EIL SPEC:6-52-46, ANSI:MC-96.1, ENI-163.00, IS:8784, BS:7655
